| SAFETY RELAYS |
| |
 |

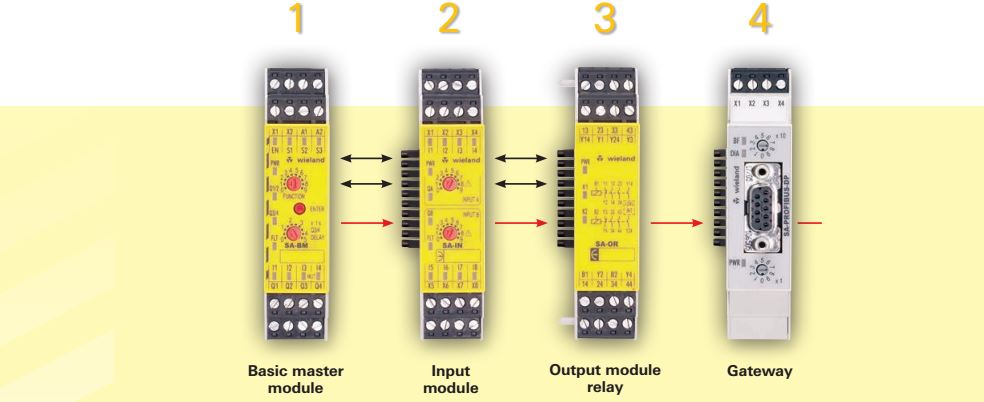

| Basic master module |
Input module |
Output module relay |
Gateway |
Safety Module with 9 function blocks, 8 safe inputs and 4 safe outputs
SILCL 3 (EN 62061-1)
PL e / Category 4 (EN ISO 13849-1) |
Expansion module with 10 function blocks and 8 safe inputs
|
Expansion modules with 2 or 4 safe potential-free relay contacts
|
Fieldbus or Ethernet gateways for easy diagnosis of the samos system
Profibus-DP, Canopen,DeviceNET
|
Modular Design
In its maximum configuration samos consists of one basic master module and additional modules to expand function blocks, input and output.
* Screw terminal or pushin terminal.
* Up to 12 safe active modules (input modules)
* Up to 4 additional safe passive output module relays
* 1 additional gateway |
| |
| Basic Devices |
SNO 4083KM |
Monitoring of emergency stop, safety gates and light barriers |
| |
SNO 4062K/KM |
Monitoring of emergency stop, safety gates and light barriers |
| |
SNO 4063K/KM |
Monitoring of emergency stop, safety gates and light barriers |
| |
SNA 4043K/KM /KE, SNA 4044K/KM |
Monitoring of emergency stop, safety gates and light barriers |
| |
SNA 4063K/KM,
SNA 4064 K/KM |
Monitoring of emergency stop, safety gates and light barriers |
| |
SNO 4003K |
Monitoring of emergency stop + safety gates |
| |
SNO 1012K |
Monitoring of emergency stop + safety gates |
| |
SNS 4074K/SNS 4084K |
Standstill monitor |
| |
SVM 4001K |
Standstill monitor |
| |
SNT 4M63K |
Monitoring of emergency stop + safety gates |
| |
SNZ 4052K |
Two-hand relay type IIC |
| |
SNZ 1022K |
Two-hand relay type IIC |
| Basic Device with time function |
SNV 4063KL |
Monitoring of emergency stop, safety gates and light barriers, OFF-delayed |
| |
SNV 4063KP |
Monitoring of emergency stop, safety gates and light barriers, ON-delayed |
|
SNV 4074SL /SNV 4076SL |
Monitoring of emergency stop, safety gates and light barriers, OFF-delayed |
| |
SNV 4274 SL /SNV 4074ST |
Monitoring of emergency stop, safety gates and light barriers, OFF-/ON-delayed |
| Safe Contact Expansion Relay |
SNE 1 |
Contact Expansion |
| |
SNE 4003K |
Contact Expansion |
| |
SNE 4004K/ KV |
Contact Expansion |
| |
SNE 4012K/SNE 4024K |
Contact Expansion |
| |
SNE 4028S |
Contact Expansion |
|
Safety Products Catalog
|
|
